Hyper-V Server backups

Hyper-V Server backups should be created using System Protection, which uses block level imaging and is better at handling large files. System Protection also has set up steps specifically designed for Hyper-V. You can use Cloud Backup, File Protection and File Archiving, but they do not provide a Hyper-V Server recovery option.

Show : Online guest backup requirements

An online backup of a Hyper-V guest means backing up a Hyper-V guest while it is operating, without causing any interruptions to the guest. It is possible for some guests to back up online while other guests within the same Hyper-V backup are offline.

A number of guest criteria and configurations are required before an online backup is possible. Below is a list of reasons why an online backup may not be supported and what you can do about it.

The Hyper-V Integration Service is not installed for that guest.

You will need to install Hyper-V Integration Services on the host, and enable it on the guest. The host and guest VSS writers can then work together to create online, application-consistent backups.

The Backup Integration service is not enabled for the guest correctly.

To make sure this service is enabled correctly, right click on the guest machine and select Settings. Under Settings, browse under Management for Integration Services and in the main window you will see Backup (volume snapshot) listed. Make sure there is a tick in this.

The guest is using a dynamically initialized disk or has a non NTFS partition.

This means a dynamic guest (as viewed from within the VM) as shown by the point 3 screen shot. For this scenario, please refer to Microsoft TechNet, which provides the following guidance. “All disks being used by the virtual machine are configured within the guest operating system as NTFS-formatted basic disks. Virtual machines that use dynamic disks or the FAT32 file system prevent an online backup from being performed.” To learn more, see Technet's VM blog.

The guests operating system does not support online backups through VSS.

Check that the Volume Shadow Copy service is started within the guest machine. This can be found under Control Panel > Administrative Tools > Services.

The physical space on the host is insufficient for a complete snapshot.

A guest can be forced into a saved state if there is not enough space on the physical disk to hold the snapshot completely, so a partial snapshot it taken and committed. While this is going on, the guest is placed into that state so that VSS can detect where it is up to.

SCSI controller's on guest when running on Server 2012 R2 host.

Adding a SCSI controller can help when running Hyper-V on a Server 2012 R2 host. To learn more see the Technet forum.

Show : Hyper-V best practice backups

Backing Hyper-V virtual machines, can become complicated once you factor in host data, volumes, domains, disks, VSS writers, services and the resulting issues that can arise. To keep the backups of your virtual machines as simple and robust as the environments themselves, we’ve put together a list of 10 tips for best practice Hyper-V backups.

Do not install other roles or applications on your Hyper-V host.

Your physical Hyper-V host server should only have one function, to be the Hyper-V host . It should not double as a file server, a DNS server or, even worse, an application server. Any non-Hyper-V software and data should be on another physical server or one of the Hyper-V guests. If you don’t follow this advice, you can complicate host level backups and affect the stability of the host server itself. Any problem with another role or application on the Hyper-V host can impact the guests. Even something as simple as a patch to an application could require a physical server reboot, and cause an outage for all of your Hyper-V guests (VMs) and the services they provide.

Only assign a single role or application to each guest.

Each Hyper-V guest (VM) should only have a single role or application. It’s easy enough to make another guest, and dedicated environments are what make virtual machines so great. For backups, having only one role or application per guest makes it easier to: Recover guests and services in a managed way, allocate backup agents and licenses, perform granular restores of data inside of Hyper-V guests.

Focus on guest only Hyper-V backups.

The Hyper-V host provides the platform, architecture and processes required to support and maintain your Hyper-V guests (VMs). Although it’s good to have a bare-metal backup of the entire physical server, backups of just the Hyper-V guests can also be useful as they contain all the data you need and use less space. For a recovery, you can reinstall the Hyper-V Server and use the backup to add the guests back. A mix of weekly full-metal archive backups and daily “guest only” backups can provide a good balance.

Enable Hyper-V integration services.

Backup software can use a VSS snapshot to maintain a copy of data that has changed during the backup, so that all of the data in the backup reflects the data as it was at a single point in time – this is called crash-consistent. Application-consistent means a VSS-Aware application checks its own files in the VSS snapshot to make sure they are correct. For example, information in memory and uncompleted database transactions are included in the snapshot, making it more accurate and consistent. This is critical, especially for applications like Exchange and SQL.

Without Hyper-V Integration Services installed, a Hyper-V guest will not be aware of the backup job so you will only get a crash-consistent backup. When you install the Hyper-V Integration Services on the host, and enable it on the guest, the host and guest VSS writers can work together to create online, application-consistent backups of applications like Exchange and SQL, inside the Hyper-V guest.

Run the backup on the Hyper-V host server, not the guest.

The easiest way to protect Hyper-V guests is to install your backup software on the Hyper-V host (physical server) and back up the guests from there. This way you can back up multiple guests using the same backup job, and have those guests in a single backup. This will also save money, because you only need one backup license. Some backup solutions may require a backup agent on each guest but BackupAssist only requires a single host license. As long as you have Hyper-V integration services installed, the Hyper-V VSS writer on the host, where the backup is running, can communicate with an application (Exchange, SQL) VSS writer on the guest, so that you have application-consistent backups of all guests - in a single backup.

To learn more about the VSS process, see VSS guide.

Do not back up a CSV device directly.

If your guests use a cluster shared volume (CSV), do not back up the CSV device directly because the Hyper-V Server’s VSS writer will not be involved. Back up the Hyper-V Server so that the Hyper-V VSS writer is used to make application-consistent backups of data on the cluster shared volume.

Don’t put the Hyper-V host on the same domain as the guests.

This safeguard applies when one of your Hyper-V guests (VMs) has the role of domain controller. If that domain controller guest goes down and the host is on the same domain, you may not be able to log into your Hyper-V Server.

Backup the whole volume.

When performing a Hyper-V System Protection backup, it’s best to back up the whole volume. This can improve the performance of incremental image backups, and it makes the backups faster. If you follow this best practice, and backup the whole volume, you should have your non-production guests (VMs) on a different volume, so that you can exclude them from the backup. If you mix guest categories or guest files across volumes, both backups and restores become more complicated and less efficient.

Keep system and guest data on separate volumes.

The volume you install Microsoft Hyper-V Server onto, and the volume used by the physical server’s operating system, should not be used to store Hyper-V guest data (VHDs). For example, if your physical server uses C: drive, your Hyper-V guests should not. They should have their own volumes, and those volumes should not contain system files, such as the physical server’s swap file. This is important for performance and to remove conflicts. It’s also important for backups because you want to be able to make “guest only” backups using complete volumes.

Use fixed virtual disks.

The types of disks you use can have an impact on your Hyper-V host server’s performance and data integrity, both of which are important for backups. For this reason, your Hyper-V host server should use fixed virtual disks. Pass-through disks add complexity and don’t allow VM snapshots or Hyper-V replica, and dynamic and differencing disks add a performance and space overhead. Fixed disks enable better performance and data integrity. This means better backups.

Show : Windows 2012 and 2016 feature support

Windows Server 2016

BackupAssist 10 introduces support for two new Windows Server Hyper-V 2016 features: Nested Virtualization and Shielded VMs. It also includes support for Hyper-V Cluster Shared Volumes on Windows Server 2016.

Nested Virtualization

Allows you to run a Hyper-V Server on a virtual machine that is itself running on a Hyper-V Server. BackupAssist can back up, restore and recover a nested VM as long as BackupAssist is installed on that VMs Hyper-V Server.

Shielded VMs

Allows you to restrict access to Hyper-V guests so that they cannot be accessed by Hyper-V administrators. This means administrators cannot access a Shielded VMs contents, change its settings or copy or move it, unless the administrator has explicit permission to do so, and does so by authenticating through the Shielded VM.

Windows Server 2012

Windows Server 2012 introduces the CSVFS format, which allows a cluster to differentiate CSV storage from NTFS storage. BackupAssist’s support for these and other feature is listed below:

BackupAssist can back up Hyper-V guests located on CSV storage using the CSVFS file system.
BackupAssist supports SMB 3.0 servers as a CSVFS backup destination.
BackupAssist does not support backups of CSVFS and NTFS locations in the same snapshot. E.g. It’s not possible to back up a guest that uses CSV as well as a guest that uses an NTFS volume.
BackupAssist supports Hyper-V Replica and can back up and restore a primary Hyper-V guest.

To learn about Hyper-V features and the Hyper-V tab, see Hyper-V Overview

To learn about best practices for implementing Hyper-V, see Hyper-V Implementation guide.

How to create a Hyper-V backup job

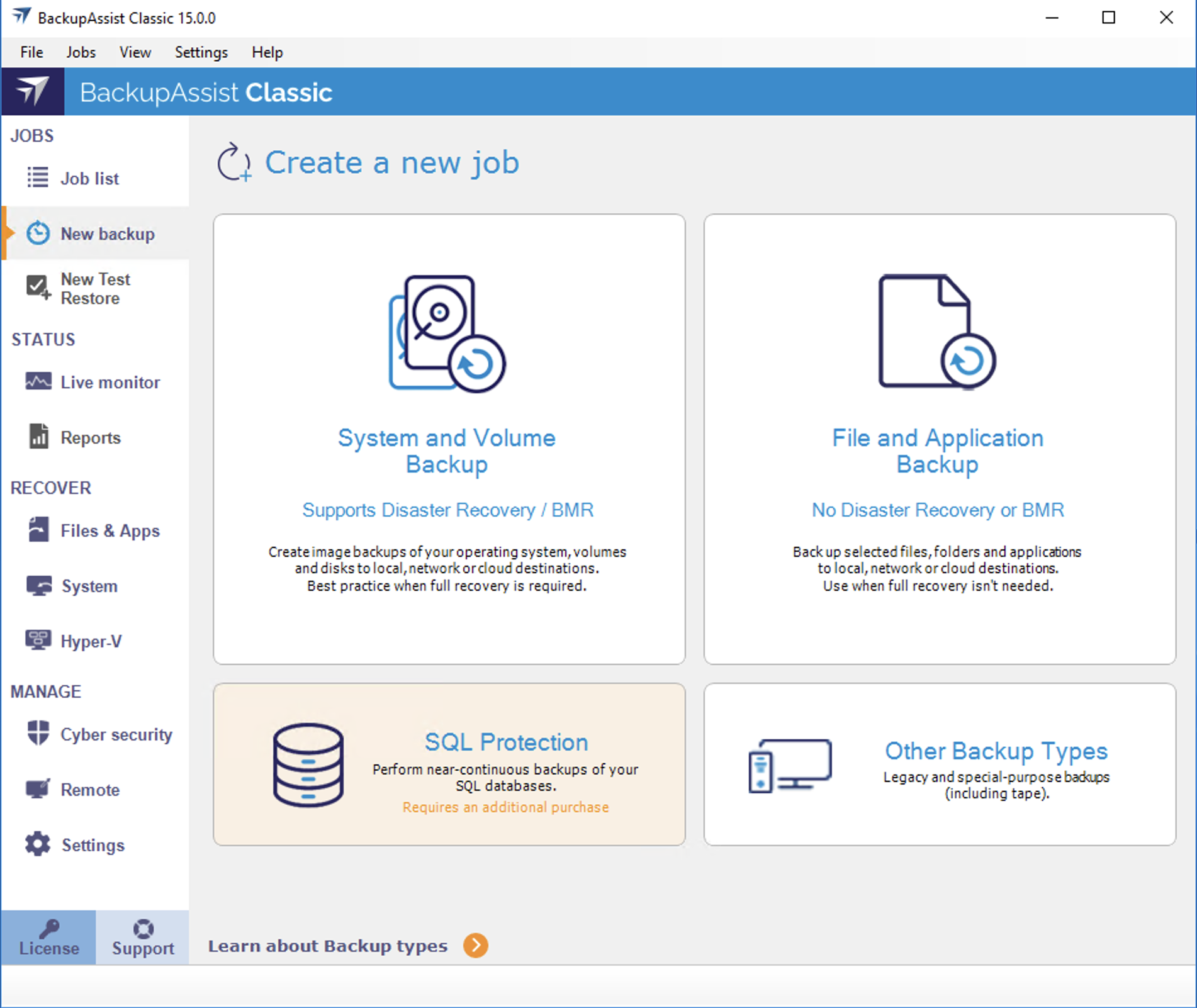

Launch BackupAssist and follow the steps outlined below:

Select the Jobs tab
Select Home.
Select Create a New Backup Job.
Select System Protection.

If this is the first time you have created a backup job, you will be asked to provide a Backup User Identity. To learn more, see Backup user identity

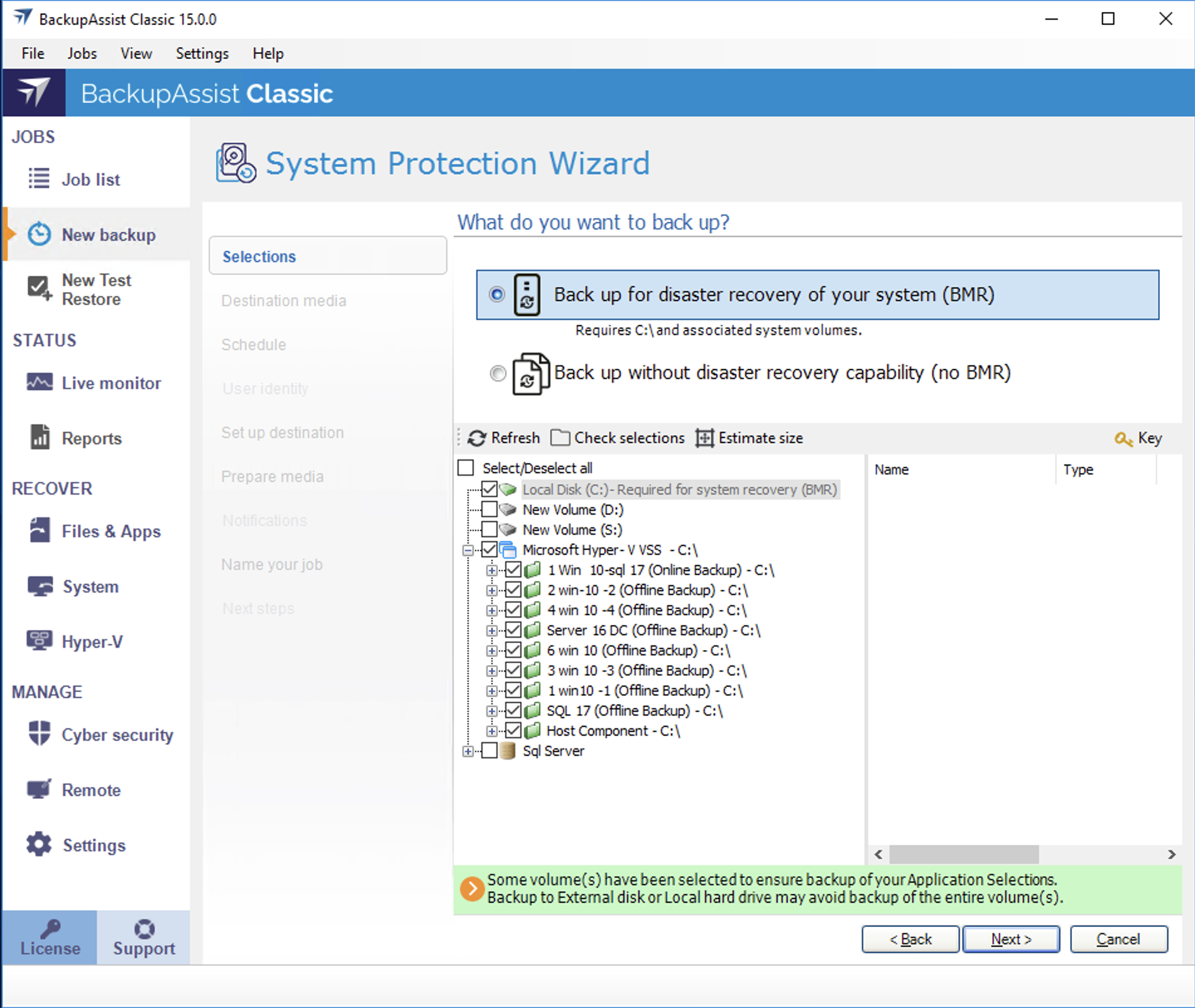

Selections.
This step is used to select the Hyper-V host and guests to be backed up. If you want a full Hyper-V Server backup, select Microsoft Hyper-V VSS and the required data will be ticked.

The Selections step options

Microsoft Hyper-V VSS

This part of the Selections screen displays the Hyper-V guests on the server. Selecting a guest in the left pane will display the data required to back up that guest in the right pane. The data displayed will be the guest’s VHD and configuration file/s. If Microsoft Hyper-V VSS is not selected, failover or migrated guests may not be backed up. The Microsoft Hyper-V VSS selection is highly recommended for CSV environments.

Critical Volumes

This part of the Selections screen displays the volume(s) that Windows Server is installed on. You must select Critical Volumes if you want to be able to use the backup for a bare-metal recovery.

Data and backup volumes

This part of the Selections screen displays the volumes that contain the guest VHDs. The VHD files (or virtual hard disk files) contain the virtual machine’s operating system, applications and data. The guests’ files should have their own volume and that volume should not contain system files, such as the physical server’s swap file.

Full VSS mode and Copy VSS mode

Full VSS mode is selected by default and means that VSS will clean up log files in the guest after the backup has been created. For example, the logs of an Exchange Server on a guest. If Copy VSS mode is selected, VSS will not perform a post backup cleanup and the size of logs will continue to grow and take up disk space.

Full Host or guest only backup

You will need to decide what Hyper-V data to back up - just the guests or the guests and the host.

Host backups are full system backups of the Hyper-V host server and guests, and includes the drive that Windows Server and Hyper-V Server are installed on. This backup will allow you to perform a recovery of the server, and allow you to restore files from the host. It will also allow you to restore full guests and, with the Hyper-V Advanced add-on, files from inside of quests.

To perform a Host backup, select Microsoft Hyper-V VSS and Critical Volumes.

Guest only backups back up selected guest VHDs and the host data each guest needs for an application-consistent restore. You will be able to restore full guests and, with the Hyper-V Advanced add-on, files from inside of quests, but you cannot restore host files. If the Hyper-V Server is only used for Hyper-V, the host files should only be system files, not user data. You will not be able to perform a bare-metal recovery, but you can reinstall Windows with Hyper-V then restore the guests to the Hyper-V Server.

To perform a guest only backup, follow the Guest only backup process below.

Show : Guest only backups

To perform a guest only backup, you select the guest to be backed up, but including the required guest data is critical because you need to ensure that you are backing up both the guest’s VHD and configuration file, which may be on different volumes.

Microsoft Hyper-V VSS considerations

Selecting the guest will display the data required to back up that guest in the right pane. You will see the guest’s VHD/X and configuration (XML) file/s. The VHD and XML files of all guests to be backed up should be on the same volume, and that volume should only contain data that is to be backed up. For example, a guest’s VHD should not be on E:\ drive and its XML file on C:\.

Data and backup volumes considerations

This part of the Selections screen shows the volumes that contain the guest VHDs. The VHD files contain the virtual machine’s operating system, applications and data. Windows Server 2012 and later allows you to use VHD or VHDX. The guests’ files should have their own volume and that volume should not contain system files, such as the physical server’s swap file. This is important for performance and to remove conflicts. As we will explain later in this article, dedicated guest volumes are also important if you want to create guest only backups.

Guest volume configurations

VHD and XML files can end up on separate volumes because when creating a guest, the Specify Name and Location step, which determines the guests location, defaults to the local system volume in C:\Program files\ Microsoft\ Windows\Hyper-V. It is common for this default to be accepted. Later in the Connect Virtual Hard disk step, you specify the guests storage, where the VHD will go. If you select a different volume to the host, the VHD will be stored on a different volume and the XML files will still be stored on the system volume. This will result in the guest’s VHD and XML files being on separate volumes.

VHD and XML files can also end up on different volumes when the default local system volume is selected on both setup steps and the virtual machine’s VHD is configured for a different volume after it has been created.

We recommended configuring guests so that their VHD and XML files are on the same volume. To do this, the volume where the guest is to be stored should be selected in the Specify Name and Location and Connect Virtual Hard disk steps.

Note: The guests to be backed up should not share a volume with data that is not to be backed up.

How to select some or all guests

Guests must be selected under Microsoft Hyper-V VSS as follows:

To select all of the guests, tick the box next to Microsoft Hyper-V VSS.
To select some of the guests, tick the box next to the guest in the Microsoft Hyper-V VSS list.

Selecting any guest will select the volume that contains the guest’s VHD and the volume that contains the guest’s XML file(s). In a best practice configuration, the VHD and XML files will be on the same volume.

The host component folder under Microsoft Hyper-V VSS does not need to be selected, because the whole volume has been selected. Using the Hyper-V Server’s VSS section, ensures that both the guest VHD and XML files are included in the backup.

Note: If guests are not selected using the Hyper-V Server’s VSS section, BackupAssist will not be able to restore the guest and the VSS writer can not make an application-consistent backup of the guest, and any VSS applications inside it. You can restore a guest without its XML file(s) by creating a new guest and using a VHD only backup, but you must still configure the backup job using the Hyper-V Server’s VSS section so that the backup is application-consistent.

How to exclude non guest data

When you tick a guest in the Selections screen under Microsoft Hyper-V VSS, both the volume containing the guest VHD and the volume containing the guest’s XML configuration file(s) will be selected. The entire volume is selected because the backup job does not know what backup destination you are using. Some backup destinations (like RDX) do not support individual file backups, which means they cannot be used to back up just the guest VHD and configuration file(s).

Destinations that support VSS: Removable drives (e.g. external USB drive), local drives, network locations (e.g. iSCSI Target, network share, NAS device using a Data container), RDX drive using a data container.

If your backup destination supports VSS, you can de-select the data you don’t need AFTER the backup job has been created. Ideally, the guest volume will only contain guests to be backed up so the whole volume can be selected.

DO NOT use the Selections screen to de-select data.

Backing up a full volume is faster and stores more backup history. However, if you have data on the guest volume that you do not want to backup, or guest data on the system volume, you can deselect data after the backup job has been created, as long as the backup destination supports VSS.

De-select data as follows:

Select Manage on the Jobs tab.
Select the backup job.
Select Files and Applications from the left menu.
De-select the volumes under Critical Volumes and Data and Backup Volumes. The guest selections under Microsoft Hyper-V VSS will stay selected.
Select Apply changes and the guest only selection will be saved.

If you only select some guests on a volume and have Full VSS Mode selected, you will receive an Implicit selections warning when you save the changes. The warning appears because VSS thinks the whole volume is being backed up, and may clean up the logs of all guests on the volume, even guests that are not backed up. This can result in a VSS application losing data (truncating logs) on guests that were not backed up, and lead to data loss for those guests. If you select Ignore the warning, the additional guests’ host data will be added to the backup so that the relevant guests get backed up before data is lost.

Selecting Copy VSS Mode means that only your selections will be backed up and VSS applications will not clean up any data, so no data loss will occur. At least one Full VSS Mode backup must be performed on a regular basis, otherwise old data like Exchange log files will never be cleaned up.

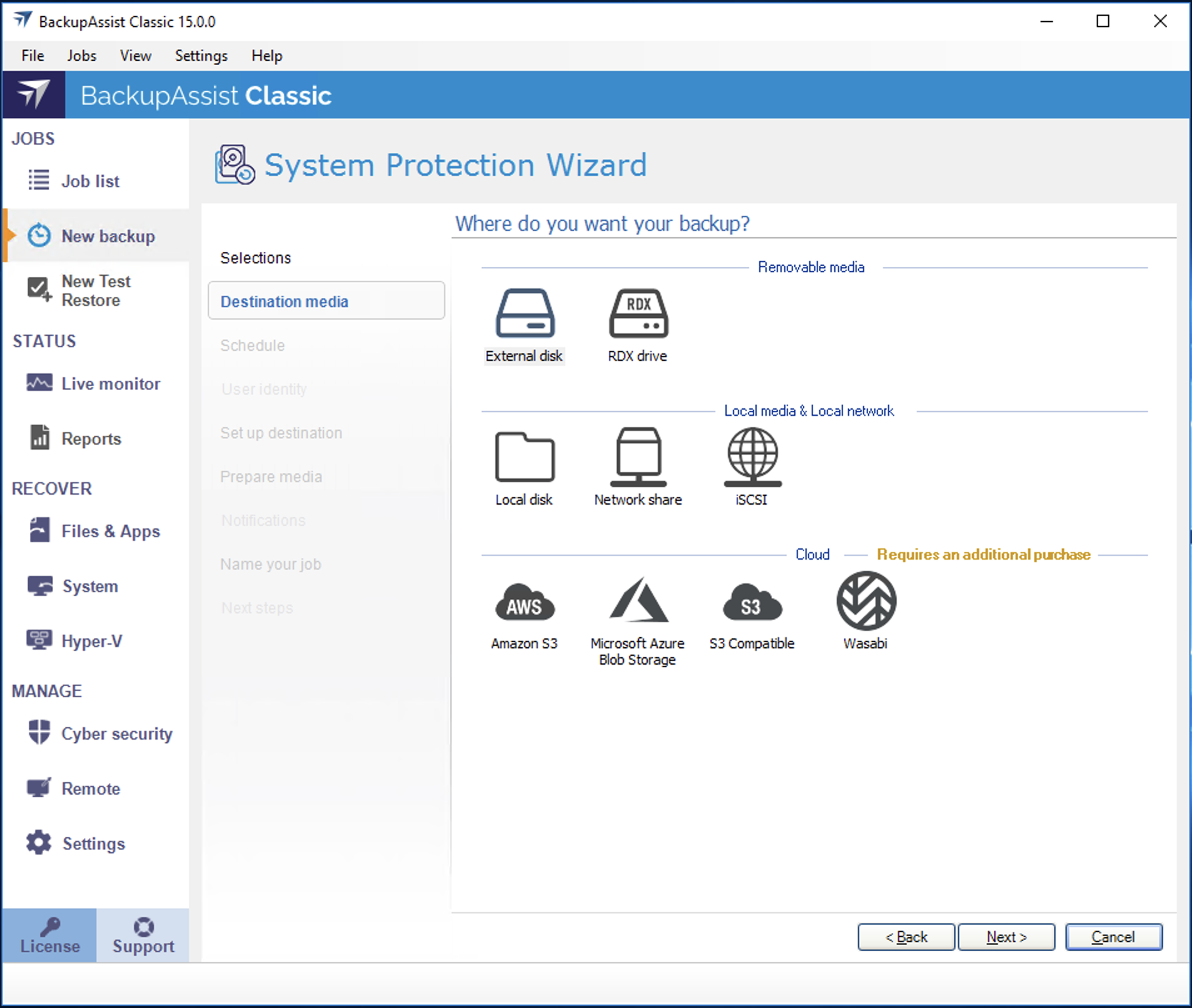

Destination media.
This step is used to select the type of media that you want to back your data up to. This step’s name will change to the media type selected, when you click Next.

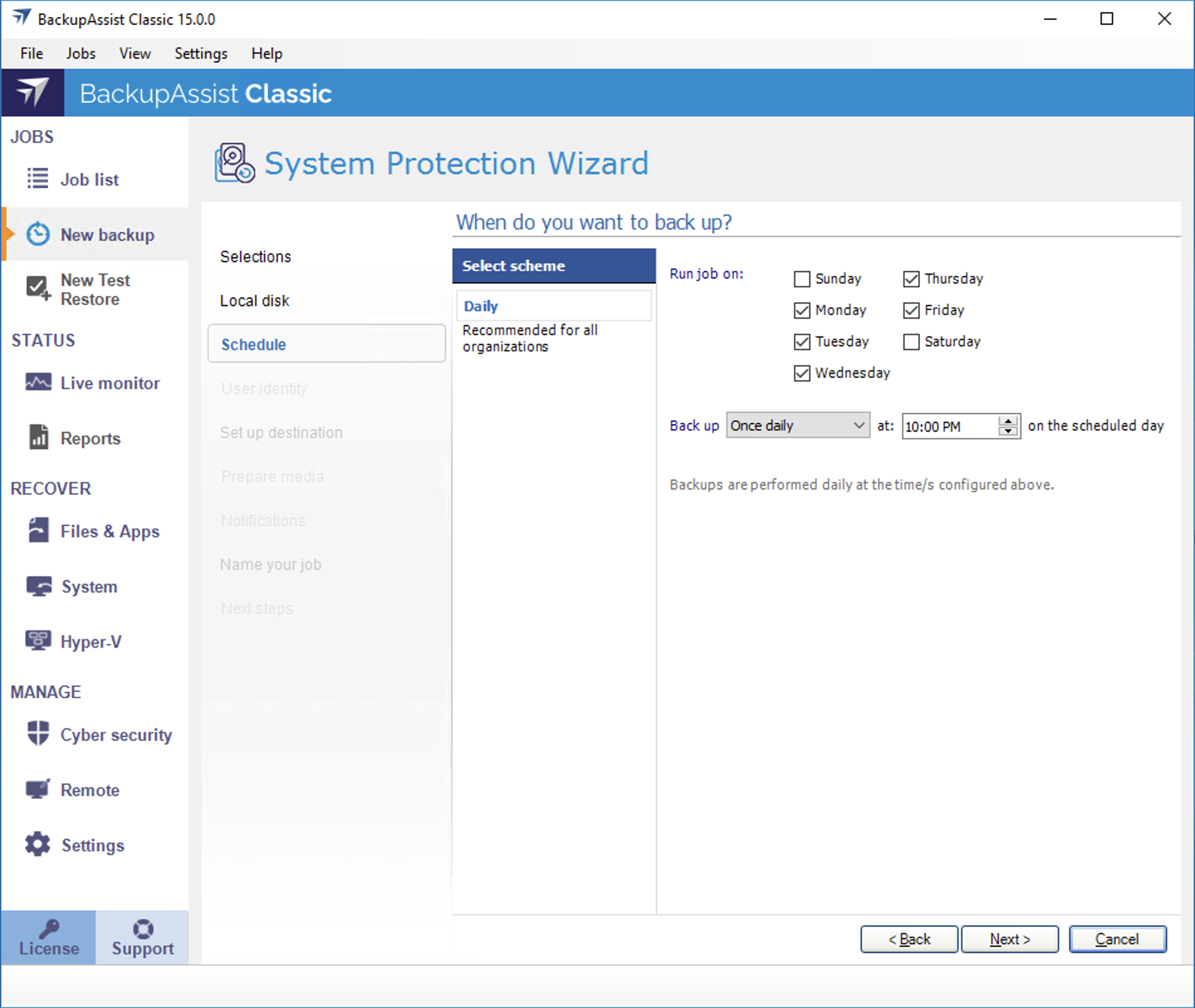

Schedule.
This step is used to select when and how you want the backup job to run, and how long you would like the backup to be retained for. A selection of pre-configured schedules, called schemes, as well as a custom scheme, can be selected.

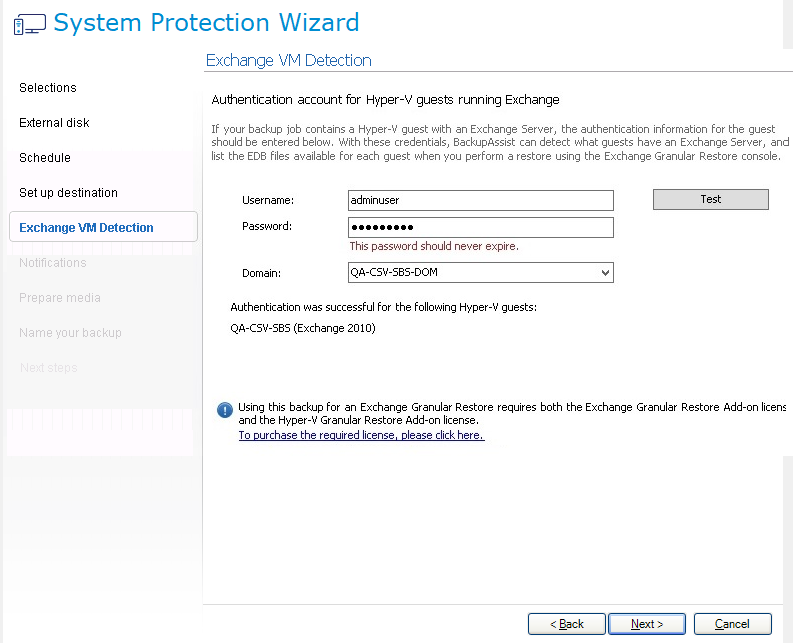

Exchange VM Detection.

If a Hyper-V guest runs an Exchange Server, use this step to provide authentication information for that guest. With this information, BackupAssist can see what guest contains the Exchange Server, even if it is on a different domain to the host.

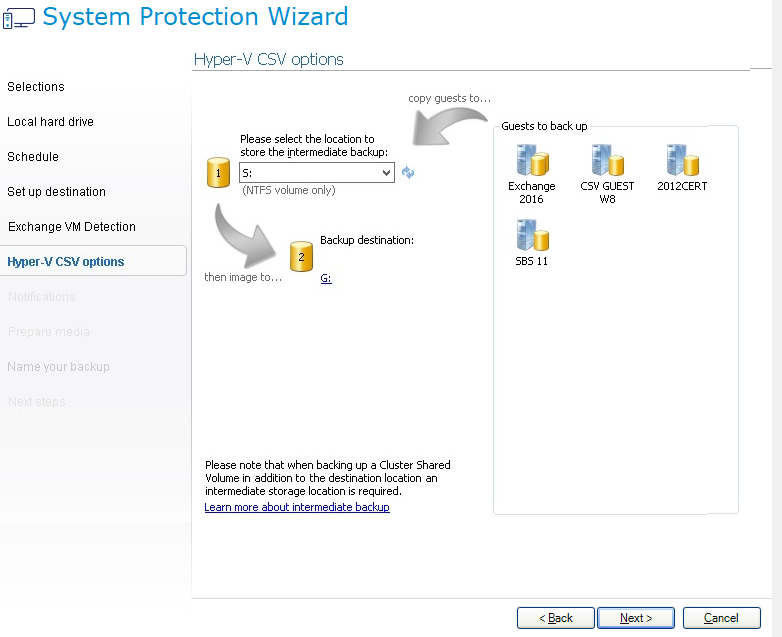

Hyper-V CSV Options.

The Hyper-V CSV Options step will only appear if you have a CSV environment. This is used to configure an intermediate backup location, called a staging disk.

Set up destination.
This step is used to configure the location of the media selected in step 5. The options presented will change with the type of media selected.

BitLocker encryption setup

If you selected BitLocker encryption in step 5, you will need to provide:

A drive letter of the USB drive used to store the encryption key. An encryption key is saved for each encrypted drive, and is used to unlock the drive when you backup and restore data.

Note: A USB flash drive containing the encryption key must connected to the server running BackupAssist, to allow BackupAssist to access the drive when you backup or restore data.

A password that will allow you to manually access any drive encrypted by this job when you perform a restore or a recovery. This password is saved in the backup job.

Note: It is important that you keep a copy of your password in a safe place, as we cannot retrieve passwords if they are lost or forgotten.

Data container setup

If you selected Data Container in step 5, you will need to configure the Data container.

For an RDX or External disk destination, Use all available space will be selected by default. It is important to review this setting to ensure it is appropriate.
For a Local hard drive and Network location, set the size manually by using the field provided, or select the Use all available space option.
The size of a Data container cannot be changed once the backup job has run.
Selecting Use all available space will allow the Data container to grow into the available space.

Bootable Backup setup

If you are doing a bare-metal backup to an external hard disk, a Bootable Backup Media option will be displayed and selected by default. This feature allows your backup media to boot into a RecoverAssist recovery environment and recover the server, without a separate boot disk.

Destination check report

If you are using a Local media or a Local network destination, a Check destinationbutton will be available to check your backup destination for problems. After the checks have been completed, the results can be viewed by selecting the Report link. If you are using Removable media destinations, these checks are performed when you select Prepare on the Prepare Media step.

Configure your backup destination, and click Next.

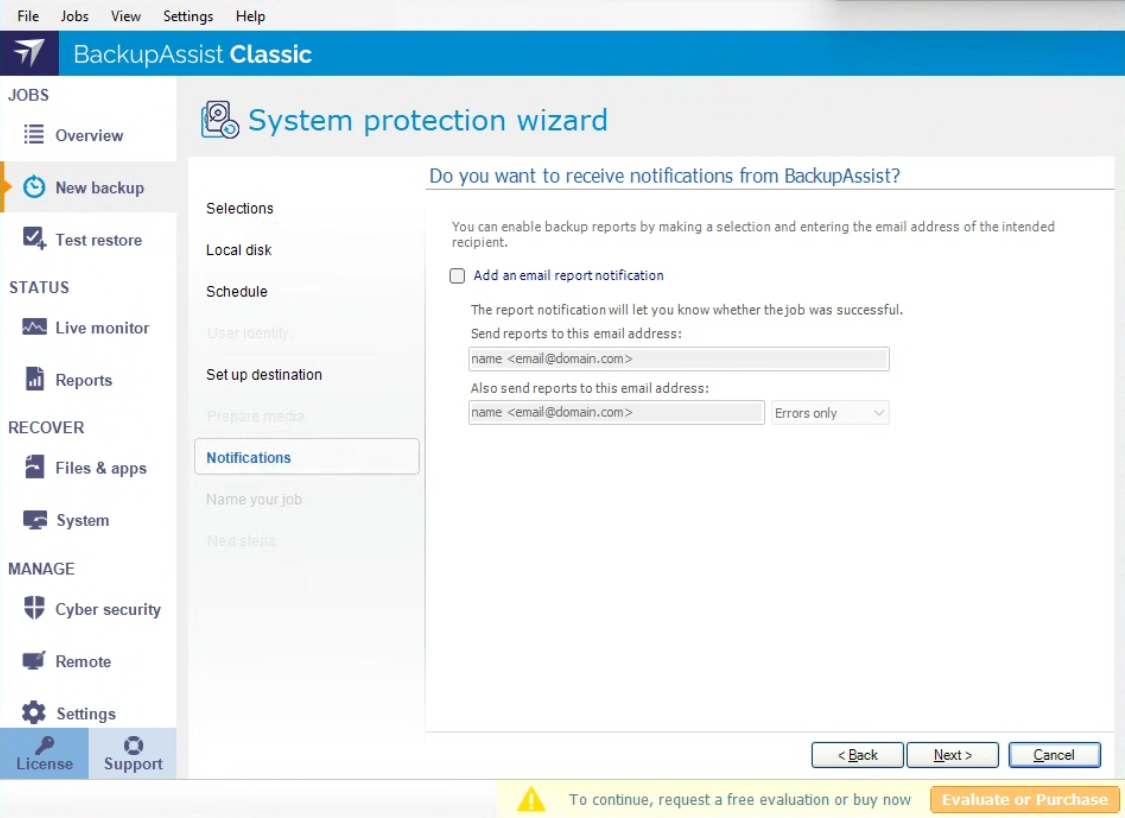

Notifications.
Once a backup job has completed, BackupAssist can send an email to inform selected recipients of the result. This email notification is enabled during the creation of the backup job, but you must also provide your mail server settings so that the notifications can be sent. To learn how to configure your mail server for BackupAssist, see Email server settings.
Show more
To enable email notifications:
1. Select Add an email report notification.
2. Enter recipients into the Send reports to this email address field.
3. Enter recipients into the Also send reports to this email address field. You can then use the drop down list to select the condition under which the email is sent.
4. If you want to know when a backup media has been changed, select Add an email reminder notification and enter the email addresses to send the notifications to.
5. Click Next.
To learn more, see Manage : Notifications
Note: After the backup job has been created, you can modify the notification's recipients, set additional notification conditions and include print and file notification types. To learn more, see Email address list

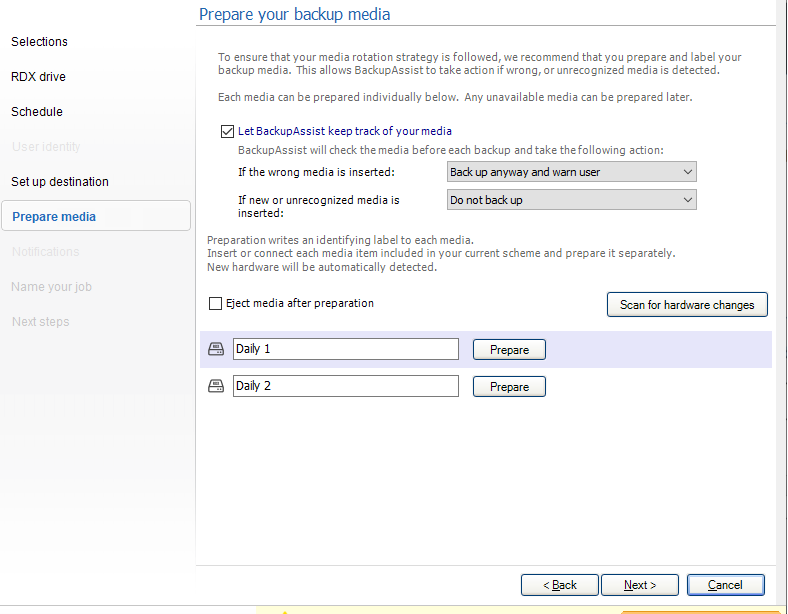

Prepare media.
If you selected BitLocker, this step will allow you to prepare the Media for BitLocker and label it. If you are not using BitLocker, but are using external drives, we recommend Editing the backup job once you have created it and using the Prepare Media option to label each drive.

When BitLocker is enabled, these three selections are automatically selected on the Prepare media screen:

Let BackupAssist keep track of your media. Deselect this if you do not want to prepare and label your media.
If the wrong media is inserted : Back up anyway and warn the users. This can be changed to Do not back up.
If new or unrecognized media is inserted : Do not back up. This can be changed to Back up anyway and warn the users.

The drives listed are based on the backup schedule selected in step 6. Each drive will have a default label name based on your backup schedule, a drive designation drop-down and a Prepare button that is selectable when the media is attached.

To prepare the media:

Attach the removable drives. If you can only attach one media at a time, repeat the steps for each media.
Change the label's description if you do not want to use the default description.
Select the drive designation.
Select Prepare.

The drives will be labeled and marked for encryption. Labeling the drive allows BackupAssist to check that it is being used on the correct day. For example, if you attach a USB drive on Tuesday but it is labeled Wednesday, BackupAssist will warn that the incorrect drive was detected. The encryption process will be initiated by the final backup job creation step. To learn more, see BitLocker Encryption guide.

Destination check report

Once the prepare process has completed, a Report link will appear next to the Prepare button. This link opens the Destination Check report, which will advise if any problems were detected with the backup media. For System Protection backups, if the Make media bootable with RecoverAssist was selected in the Set up destination screen, the report will also advise if the media can or cannot be made bootable.

Once all of the media have been prepared, select Next.

Name your backup.
Provide a name for your backup job, and click Finish.
If you are using BitLocker encryption, the option will be Next.

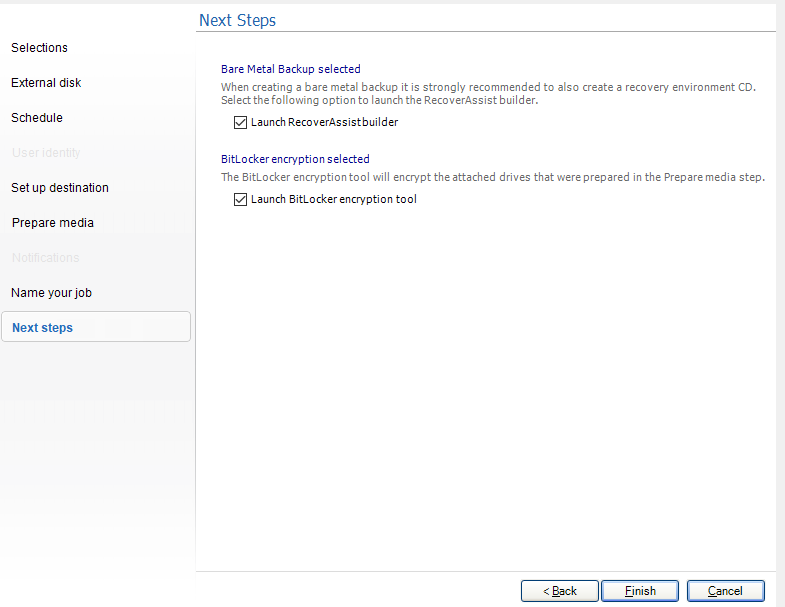

Next steps.
This step will be available if you selected Enable BitLocker encryption, so you can encrypt the removable drives. This step will also be available if you are making a backup of the entire system, so that you can make a bootable media.

Your Hyper-V backup job has now been created.

Note: BackupAssist's reports can be used to review the results of each backup job. Backups should also so be checked by performing a test restore. Regular test restores should be part of your backup solution.

What's next

To learn about monitoring backup jobs, see Monitor backups
To learn about the other backup settings available, see Settings tab
To learn about the options available when you edit a backup job, see Manage backup jobs
